Development and validation of a nomogram for predicting the status of estrogen receptor-low-positive breast cancer

Zhanli Jia1#, Shuyao Niu1#, Xinle Wang2, Si Wu1, Jinze Li1, Mengxue Han1, Yueping Liu1

1Department of Pathology, The Fourth Hospital of Hebei Medical University, Shijiazhuang, China; 2Department of Breast Center, The Fourth Hospital of Hebei Medical University, Shijiazhuang, China

Contributions: (I) Concept and design: Z Jia, Y Liu; (II) Administrative support: Y Liu; (III) Provide learning materials or patients: S Niu, S Wu; (IV) Collect and assemble data: Z Jia, S Niu, J Li; (V) Data analysis and interpretation: Z Jia, S Niu, M Han; (VI) Manuscript writing: All authors; (VII) Final approval of the manuscript: All authors.

#These authors contributed equally to this work.

Correspondence to: Dr. Yueping Liu. Department of Pathology, the Fourth Hospital of Hebei Medical University, No. 12 Jiankang Road, Shijiazhuang 050011, China. Email: annama@163.com.

Background: To identify whether patients with estrogen receptor (ER)-low-positive breast cancer can benefit from endocrine therapy, it is of great significance to guide their treatment. We have developed and validated a nomogram to predict the status of ER-low-positive breast cancer based on clinicopathological characteristics.

Methods: A retrospective study was conducted on 450 patients with invasive breast cancer. Among them, 139 (30.89%) patients were ER-negative (ER <1%) and 311 patients (69.11%) were ER-positive (ER >10%), and the two groups of patients were randomly divided into training cohort and validation cohort at a ratio of 7:3. Multivariate logistic regression analysis was performed, after which a nomogram for predicting the status of ER was constructed and validated. Discrimination of the prediction model was assessed using an area under the receiver operating characteristic curve (AUC), and calibration was assessed using calibration plots. The Youden index was calculated to determine the optimal cut-off value. Finally, the nomogram is used to predict the status of 260 ER-low-positive (1–10%) breast cancer.

Results: The final multivariate regression model included nuclear pleomorphism, mitoses, TILs, and necrosis. The nomogram showed good calibration and discrimination in both sets (an AUC of 0.804 and 0.828 for the training and validation cohorts, respectively). According to the Youden index, the optimal cut-off value was 0.59. Status prediction was performed for ER-low-positive breast cancer, of whom 63.08% was predicted as negative and 36.92% was predicted as positive. Those who with negative predicted result had lower levels of ESR1 mRNA expression, did not benefit from endocrine therapy, and had a poorer prognosis.

Conclusions: We developed and validated a nomogram to predict the status of ER-low-positive breast cancer based on clinicopathological characteristics. The nomogram will facilitate individualized precision treatment of ER-low-positive breast cancer.

Keywords: Breast cancer; estrogen receptor low positive (ER low positive); nomogram


Received: 15 June 2021; Accepted: 12 July 2021; Published: 31 July 2021.

doi: 10.21037/tbcr-21-12


Introduction

According to the 2018 Global Cancer Statistics, breast cancer is the most common cancer and the leading cause of cancer death among women (1). The expression of estrogen receptor (ER) is of crucial significance to guiding treatment and predicting the prognosis of breast cancer patients (2-4). Although 1% is used as the cut-off value for positive ER expression and endocrine therapy is recommended (5), in the 2020 update of the American Society of Clinical Oncology/College of American Pathologists (ASCO/CAP) guideline for the immunohistochemical testing of ERs in breast cancer, the expert panel acknowledges that there are limited data on endocrine therapy benefit for cancers with 1% to 10% of cells staining ER positive, and that a new reporting category should be used: ER low positive (6). A number of retrospective studies (7-21) found that ER-low-positive breast cancer is a heterogeneous group of diseases in which most patients share similar clinicopathological features, molecular characteristics, and clinical prognosis as those with ER-negative tumors, and do not benefit from endocrine therapy. Despite the relatively low toxic side effects of endocrine therapy, the correct identification of patients who would not benefit from endocrine therapy among ER-low-positive breast cancer is great importance to guiding the treatment.

Although ER-low-positive tumors account for only 2–3% of all ER-positive tumors, a special clinical challenge exists for this group of patients, which is the issue of how they should be treated (6). In ER-low-positive breast cancer, the effect and prognosis of endocrine therapy in patients cannot be accurately assessed based on the expression level of ER alone. Therefore, we developed a nomogram based on the patients’ clinicopathological characteristics, which can serve as a method to predict the status of ER-low-positive breast cancers, in order to guide the individualized precision treatment of ER-low-positive patients. We present the following article in accordance with the TRIPOD reporting checklist (available at https://dx.doi.org/10.21037/tbcr-21-12).


Methods

Patients

The database of the Department of Pathology of the Fourth Hospital of Hebei Medical University was reviewed, from which 450 patients with primary invasive breast cancer were screened (Figure 1). The patients underwent surgery at the Fourth Hospital of Hebei Medical University from January 2012 to December 2012, of which 139 was ER-negative (<1%) and 311 was ER-positive (>10%). The two groups of patients were randomly divided into training cohort and validation cohort at a ratio of 7:3.

Figure 1 Study design. ER, estrogen receptor.

In addition, 260 patients with ER-low-positive (1–10%) primary invasive breast cancer, who underwent surgery at the Fourth Hospital of Hebei Medical University from January 2012 to December 2018, were also screened.

1–100% tumor cell nuclear staining is defined as ER positive, and for ER 1–10% tumor cell nuclear staining, it is defined as ER low positive. If <1% of tumor cells have nuclear staining, the ER is considered negative.

Statistics

Clinicopathological characteristics include the following factors: age, menopausal status, primary site, histological type, tumor size, lymph node status, clinical stage, LVI, tubule formation, nuclear pleomorphism, mitoses, histological grade, TILs, necrosis, and ER. Univariate logistic regression was used to test the associations between ER and clinicopathological characteristics. Multivariable logistic regression was performed to identify independent covariates. In the final nomogram, only factors with P<0.05 were retained.

The performance of the nomogram was quantified with respect to discrimination and calibration. The receiver operating characteristic (ROC) curve was drawn, and the predicted accuracy was assessed by calculating the area under the ROC curve (AUC). When the AUC is above 0.75, the model is considered to have good predictive performance. A 95% CI was calculated for each AUC. Calibration was used to illustrate the relation between the predicted and observed probabilities. Youden index was used to determine the optimal cut-off value of the nomogram.

Statistical analyses were performed using R version 3.6.3, RStudio version 1.3.1093, GraphPad Prism version 8.0.1.

Measures and assessment of ER status

The nomogram was extrapolated to ER-low-positive tumors to obtain the predicted results. Total RNA extraction was performed on each ER-low-positive tumor sample, and the expression level of ESR1 mRNA was detected using one-step RT-qPCR. To exclude the possibility of heterogeneity in tumor tissues, ER immunohistochemistry and ESR1 gene expression levels were measured on the same paraffin-embedded tissue block for each sample. The differences in ESR1 mRNA expression levels and prognosis were compared between the two groups of patients with negative and positive predicted results.

This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and the Harmonized Tripartite Guideline for Good Clinical Practice from the International Conference on Harmonization. This study was approved by Institutional Review Board of The Fourth Hospital of Hebei Medical University. Informed consent was obtained from all individual participants included in the study.


Results

Patient characteristics

In this research, data were retrospectively collected from 450 patients with invasive breast cancer, including 139 (30.89%) ER-negative (<1%) cases and 311 (69.11%) ER-positive (>10%) cases. The two groups were randomly divided into the training and validation cohorts at a ratio of 7:3. The two cohorts showed no statistically significant differences for any of the clinicopathological characteristics (P>0.05), which implied that the data of the two groups were comparable. The clinicopathological characteristics of the research population are shown in Table 1.

Table 1

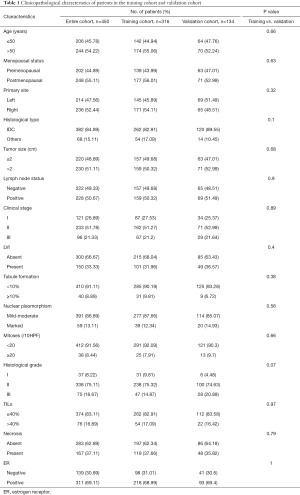

Table 1 Clinicopathological characteristics of patients in the training cohort and validation cohort
Full table

Predictors associated with ER expression

Since the purpose of our study was to explore the effects of the patients’ clinicopathological characteristics of tumor tissues on ER expression, we did not include immunohistochemical indicators in our analysis. Furthermore, given that correlations of tubule formation, nuclear pleomorphism, and mitoses with histological grade may reduce the accuracy of the nomogram, we eliminated histological grade from the logistic regression analysis.

In the univariate logistic regression analysis of the training cohort, factors associated with ER expression included primary site (P=0.01), histological type (P=0.01), TILs (P<0.001), nuclear pleomorphism (P<0.001), mitoses (P<0.001), and necrosis (P<0.001). Multivariate logistic regression analysis was then performed, and independent factors associated with ER expression included nuclear pleomorphism (P=0.0339), mitoses (P=0.0022), TILs (P<0.001), and necrosis (P=0.0007) (Table 2).

Table 2

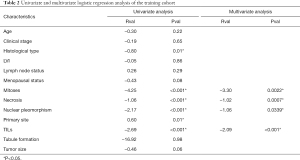

Table 2 Univariate and multivariate logistic regression analysis of the training cohort
Full table

Development of the nomogram

Based on the independent factors identified by multivariate logistic regression analysis, the patients’ clinicopathological characteristics of tumor tissues were used to develop a nomogram that included nuclear pleomorphism, mitoses, TILs, and necrosis in order to predict ER expression (Figure 2).

Figure 2 Nomogram for predicting ER expression. ER, estrogen receptor.

Validation of the nomogram

Firstly, we evaluate the consistency of the nomogram. In the training cohort (Figure 3A) and the validation cohort (Figure 3B), the calibration plots of the nomogram show a good consistency between the predicted probability and the actual probability. The AUCs of the training cohort (Figure 4A) and the validation cohort (Figure 4B) were 0.804 (95% CI: 0.750–0.858) and 0.828 (95% CI: 0.752–0.903), respectively. The AUC values of the training cohort and the validation cohort are similar, which indicates that the nomogram does not over fit the training data, so it has good prediction ability.

Figure 3 Calibration plots for the training cohort (A) and validation cohort (B). ER, estrogen receptor.

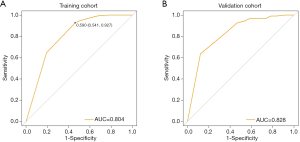

Figure 4 ROC curves for the training cohort (A) and the validation cohort (B). ROC, receiver operating characteristic; AUC, area under the ROC curve.

Determining the cut-off value for predicting ER expression

A higher cut-off value would result in increased specificity and decreased sensitivity, whereas a lower cut-off value would result in increased sensitivity and decreased specificity. By calculating the Youden index, we derived an optimal cut-off value of 0.59 for predicting ER expression that ensured both sensitivity and specificity (Figure 4A). The prediction value <0.59 indicates a negative ER result, and the prediction value >0.59 indicates a positive ER result.

Dynamic nomogram

In order to improve the applicability of the nomogram to clinical practice, a dynamic nomogram was constructed based on the model established by R language (Figure 5). Using the nomogram, the predicted values for ER expression can be calculated by evaluating nuclear pleomorphism, mitoses, TILs, and necrosis.

Figure 5 Dynamic nomogram.

Status prediction for patients with ER-low-positive tumors

Status prediction was performed for 260 ER-low-positive patients between 2012–2018 based on the dynamic nomogram. Our findings indicated that 164 patients (63.08%) were predicted as negative (predicted value <0.59) and 96 (36.92%) were predicted as positive (predicted value >0.59).

The expression level of ESR1 mRNA in each ER-low-positive tumor sample was tested, and the Ct value of the ESR1 gene in each sample was normalized relative to the Ct value of the reference gene to obtain a ∆Ct value. Patients with negative predicted results showed significantly lower expression levels of ESR1 mRNA (P<0.05) (Figure 6).

Figure 6 Expression of ESR1 mRNA in ER-low-positive tumors. ER, estrogen receptor.

Survival analysis was performed on patients with ER-low-positive breast cancer in both groups based on their prediction results with a follow-up time of 24–106 months. In the overall population, patients with negative predicted results had significantly worse disease-free survival (DFS) (χ2=13.040, P<0.001) and overall survival (OS) (χ2=13.938, P<0.001). To exclude the effect of anti-HER2 targeted therapy on prognosis, HER2-negative patients were selected for analysis, which showed that patients with negative predicted results had significantly worse DFS (χ2=5.363, P=0.021) and OS (χ2=5.761, P=0.016). In addition, to examine whether patients in both groups would benefit from endocrine therapy, patients who received endocrine therapy were selected for analysis, and the results showed that patients with negative predicted results had significantly worse DFS (χ2=4.613, P=0.032) and OS (χ2=5.069, P=0.024) (Figure 7). These findings suggest that among patients with ER-low-positive breast cancer, those with a negative predicted result had a significantly worse prognosis and did not benefit from endocrine therapy.

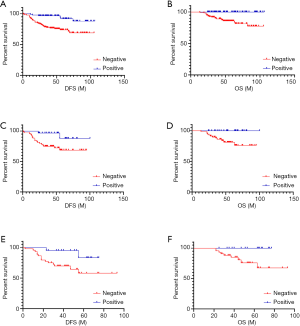

Figure 7 Survival analysis. (A,B) Survival analysis of patients with ER-low-positive breast cancer; (C,D) survival analysis of patients with ER-low-positive/HER2-negative breast cancer; (E,F) survival analysis of patients with ER-low-positive/HER2-negative breast cancer after endocrine therapy. DFS, disease-free survival; OS, overall survival; ER, estrogen receptor.

Discussion

ER-low-positive breast cancers are relatively rare, accounting for only 2–3% of ER-positive tumors (6). Thus, it is unlikely that prospective clinical trials will be conducted to determine the optimal treatment strategy for this status. Although endocrine therapy has relatively low toxic side effects, the proper identification of patients with ER-low-positive breast cancer who will not benefit from endocrine therapy can reduce unnecessary treatments and toxic side effects, which is great importance to formulating patient treatment plans, improving their quality of life, and decreasing their financial burden.

Previous studies have shown that ER expression is associated with features of good prognosis, whereas ER-negative tumors are poorly differentiated and have a high nuclear grade, that is, ER-negative tumors have larger nuclei, show greater pleomorphism, and exhibit mitosis more frequently (7,22). Moreover, in-depth investigations of TILs found that the distribution of TILs varied among breast cancer subtypes, with the highest levels found especially in triple-negative and HER2-overexpressing subtypes, and significantly lower levels found in hormone receptor positive breast cancers (23,24). In summary, these findings suggest that in most cases, the clinicopathological features of tumor tissues are closely related to the ER expression.

To better guide the clinical development of individualized treatment plans for patients with ER-low-positive breast cancer, we developed a nomogram based on the clinicopathological characteristics, which can serve as a method to predicting the status of ER-low-positive breast cancer. Our study is consistent with the results of previous retrospective studies, which showed that the majority of ER-low-positive tumors exhibited similar clinicopathological features to ER-negative tumors, and that this group of patients did not benefit from endocrine therapy and had a poorer prognosis.

In addition, for resource-poor areas, prediction models may serve as a cheaper and more convenient alternative to immunohistochemical or genetic testing. However, there are still some limitations to this study. First, our study data came from the same institution, and did not take into account the differences between different ethnic groups, geographical areas, and other aspects. Second, our model only incorporated the morphological characteristics of tumor cells within the region of invasive carcinoma, and did not consider the effects of factors such as regions beyond the invasive carcinoma and tumor stromal cells on ER expression. These characteristics may help to optimize the model and enhance the accuracy in the predicted performance of the model.


Conclusions

First, the nomogram constructed by clinicopathological characteristics showed good discrimination of ER expression. Patients with significant nuclear pleomorphism, mitoses >20/10 HPF, TILs >40%, and visible necrosis had a greater tendency to be negative for ER expression. Second, we applied the dynamic nomogram for the status prediction of ER-low-positive breast cancer, and the results showed that patients with predicted values <0.59 had lower ESR1 mRNA expression levels, did not benefit from endocrine therapy, and had a poorer prognosis. The nomogram can facilitate the accurate identification of these patients for whom ineffective endocrine therapy should be avoided in favor of more aggressive treatment strategies.
